The Project of the Replacement of the Standby Water Source Area in Ningguo City - Pump Boat Project
The Project of the Replacement of the Standby Water Source Area in Ningguo City - Pump Boat Project
- Share
- Issue Time
- 2025/6/6 16:13:02

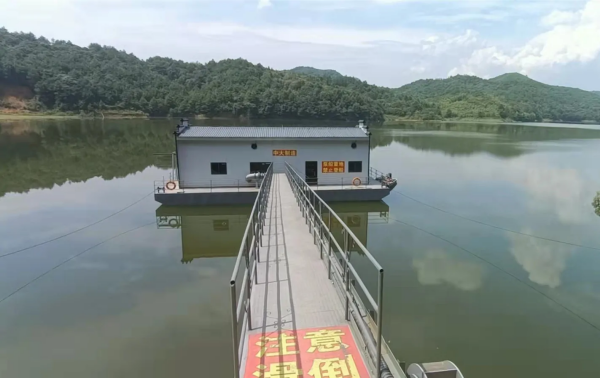

Project Name: Ningguo City Alternative Water Source Relocation Project - Water Pump Boat Project
Location: Ningguo, Xuancheng, Anhui Province
Project Purpose: Urban alternative water source

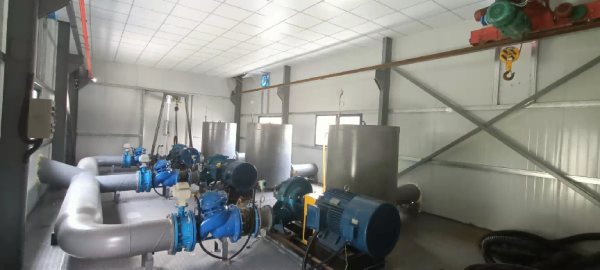

Main technical parameters of the pumping station
Main dimensions: 18.7 x 9.9 x 1.3 m
Unit configuration: 3 units (2 in use, 1 standby)
Single unit flow rate: 460 m³/h
Head: 31 m
Power: 75 kW per unit, 380 V
Control mode: On-boat / on-shore, local / remote control

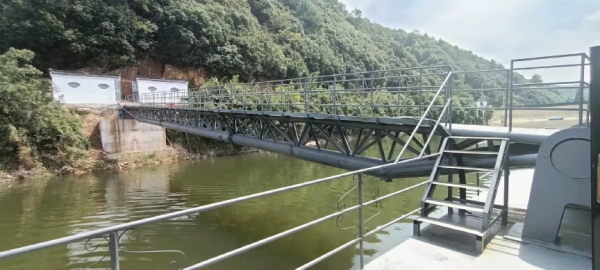

Connection method to shore: 45-meter DN400 swing arm connection
