Price
US $880-845
Model
QH Stainless Stell Deep-well Pump
MOQ
1 piece

Item specifics

Material
Cast iron, cast steel, stainless steel
Capacity
As Customer Requirements
Max Head
As Customer Requirements
Colour
customizable

Review

Description

  • Product Introduction
  • Product Features
  • Scope of Application
  • Structural Drawings
  • Performance Parameters
  • Data Download

Product Introduction

QJ stainless steel deep well pump is a high-performance water pump specially designed for deep well water extraction, widely used in agricultural irrigation, industrial water supply, domestic water use and other fields. Its core feature is that it is made of stainless steel, which has excellent corrosion resistance and durability, making it particularly suitable for extracting groundwater containing corrosive substances or for occasions with high water quality requirements.

Model Description:


     For example, 150QJ32-128/22, where:
✔  QJ: indicates the type of vertical multi-stage deep well pump.
✔  150: Indicating that the applicable wellbore diameter is not less         than 150mm.
✔  32: represents the pump's flow rate (m3/h).
✔  128: represents the pump's head (m).
✔  22: Indicate the matching motor power (kW)
icon

Product Features:

  • - Excellent material: The main components such as the pump body and impeller are made of stainless steel (such as 304 or 316 stainless steel), which has strong corrosion resistance and is suitable for various water quality environments.
  • - High efficiency and energy saving: Advanced hydraulic model design ensures high operating efficiency, low energy consumption, and economic practicality.
  • - Compact structure: The pump body is designed compactly, easy to install, and suitable for deep wells with smaller diameters.
  • - Stable operation: The motor is directly connected to the pump body, ensuring smooth operation, low noise, and minimal vibration.
  • - Long service life: The stainless steel material and precise manufacturing process guarantee the durability of the pump and extend its service life.
  • - Easy maintenance: The modular design makes disassembly and repair convenient, reducing maintenance costs.
icon

Scope of Application:

- Agricultural irrigation: Extracting groundwater from deep wells to meet the irrigation needs of farmland.
- Industrial water supply: Providing a stable water source for industrial production, especially suitable for industries with high water quality requirements such as chemical engineering and pharmaceuticals.
- Domestic water supply: Used for the supply of domestic water in rural and urban areas, ensuring the safety of drinking water.
- Mine drainage: Applicable for mine drainage and groundwater extraction.
- Seawater desalination: Some models can be used for water lifting operations in seawater desalination systems.

iconStructural Drawings:

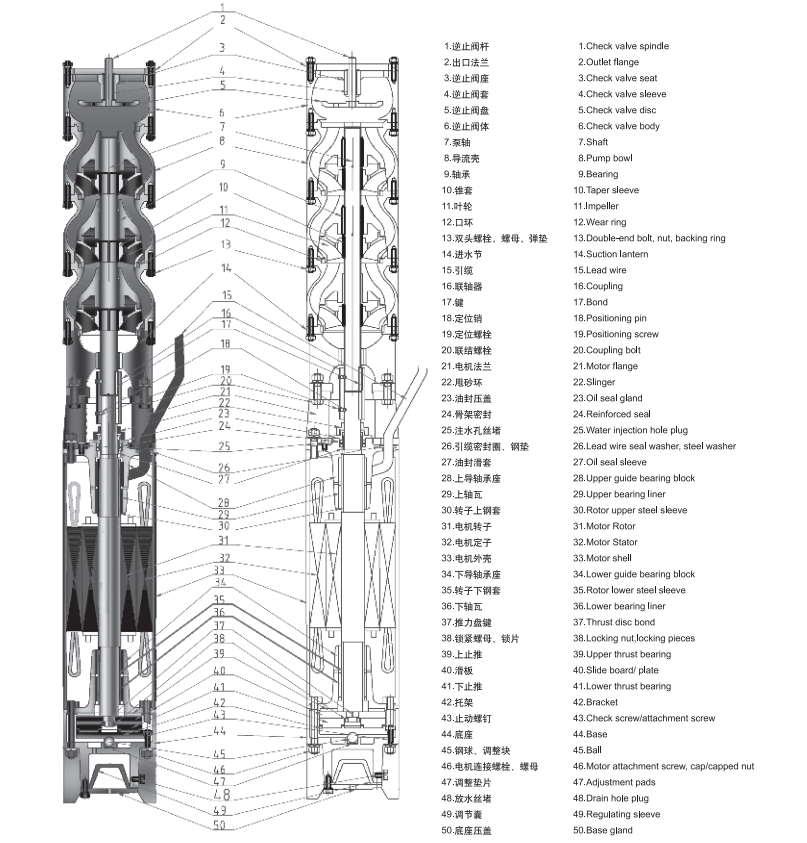

Multi-stage pump structure diagram

iconPerformance Parameters:

NO.
Model
Flow
Head
Motor
Power
Outer
Diameter
Cable Section
Height
Weight
m3/h
m
kW
mm
mm2
mm
kg

1

150QJ10-28/3
10
28
3
143
2.5
1280
59

2

150QJ20-38/4
20
38
4
143
4
1425
75

3

150QJ32-60/11
32
60
11
143
6
2010
120

4

150QJ40-105/22
40
105
22
143
16
3360
242

5

200QJ20-260/37
20
260
37
184
25
3020
290

6

200QJ32-340/55
32
340
55
184
50
4160
545

7

200QJ50-255/63
50
255
63
184
50
3710
458

8

200QJ80-204/75
80
204
75
184
50
3740
410

9

250QJ100-200/90
100
200
90
233
50
3065
469

10

250QJ125-250/132
125
250
132
235
95
3565
701

11

250QJ140-253/150
140
253
150
235
95
3700
719

12

250QJ150-240/185
150
240
185
235
70X2
3928
781

13

300QJ180-260/200
180
260
200
281
70X2
4670
1062

14

300QJ200-264/220
200
264
220
281
95X2
4980
1142

15

300QJ240-247/260
300
247
260
360
120X2
4885
1284

16

300QJ320-217/300
320
217
300
360
120X2
4265
1243
...
...
...
...
...
...
...
...
...

*For more models, please download our catalogue or contact us.

iconData Download:

Download Multistage Pumps PDF Brochure

QJ-type multi-stage DEep well pump

Download Product PDF Brochure

PDF Download
