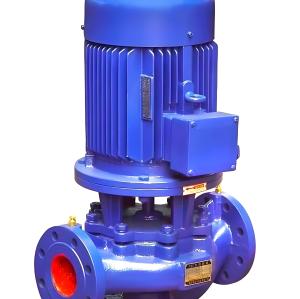

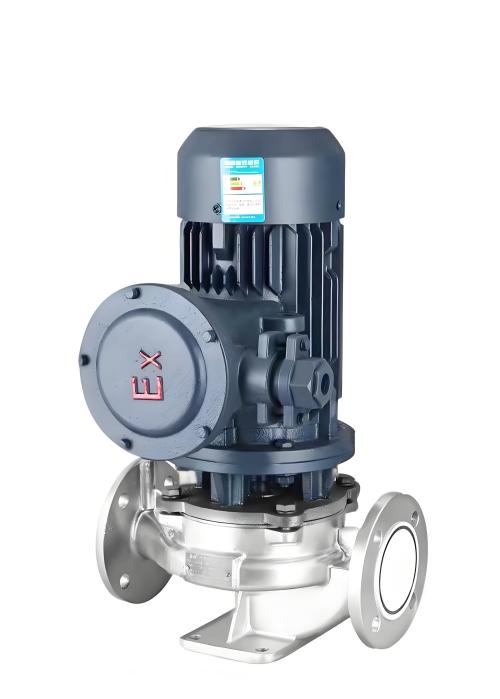

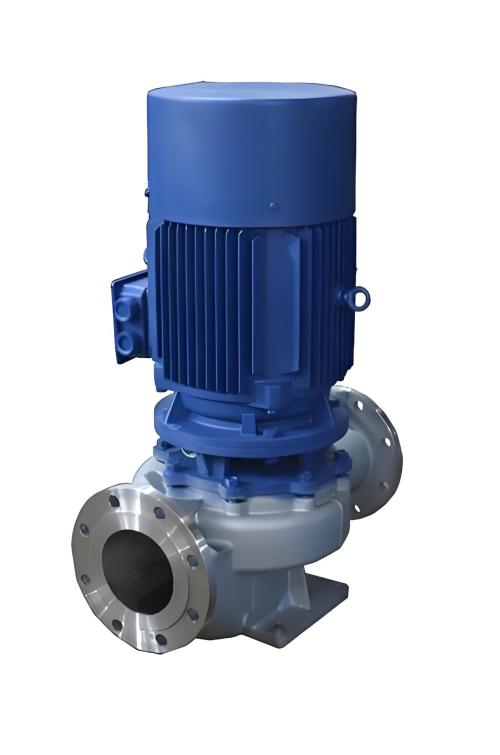

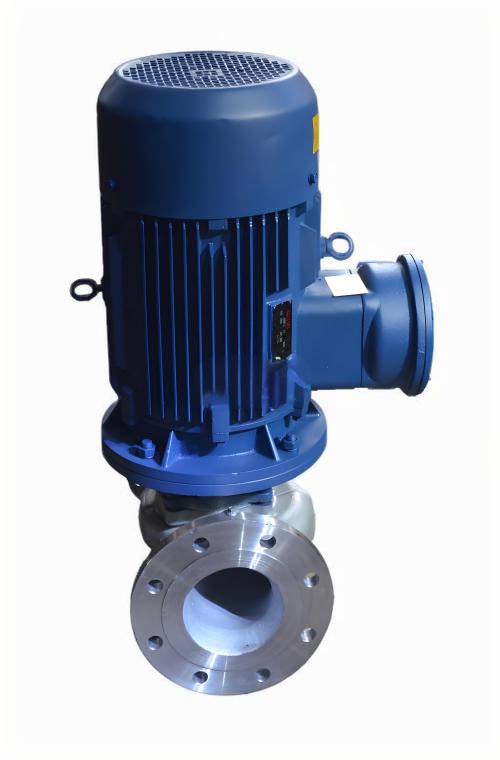

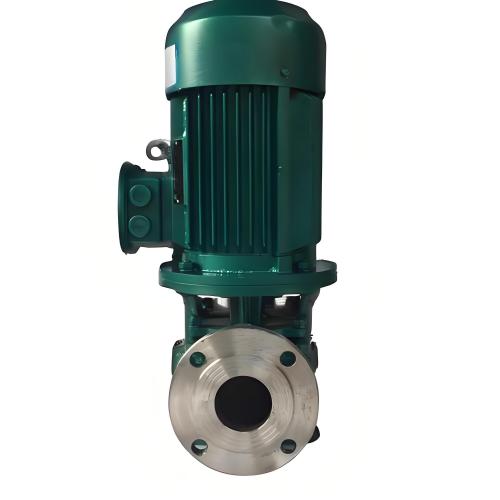

IHG Pipeline Pump Water Pump |Single stage single suction centrifugal pump | Stainless steel| High Efficiency | Industrial pump
- Price
- US $800-600
- Model
- IHG
- MOQ
- 1 piece
Item specifics
- Colour
- customizable
- Capacity
- 3.75-840m3/h
- Max Head
- 19-680m
Review
Description
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The ISG type pipeline pump is a centrifugal pump widely used in industries such as manufacturing, construction, municipal water supply, and HVAC. Its design features direct installation on pipelines, a compact structure, and ease of installation. It is suitable for transporting clear water or liquids with physical and chemical properties similar to water.
Model Description:
For example, IHG100-160A, where:
- IHG: indicates vertical stainless steel pipeline centrifugal pump
- 100: represents the inlet diameter of the pump (in millimeters).
- 160: represents the nominal diameter of the impeller (in millimeters).
- A: indicates that the impeller has undergone the first cut (B indicates the second cut, and so on).
Product Features:
- Compact structure: The pump is directly coupled with the motor, featuring a compact overall structure, small floor space and easy installation.
- High efficiency and energy saving: Advanced hydraulic model design ensures high operational efficiency and low energy consumption.
- Smooth operation: The pump shaft is equipped with high-quality mechanical seals, ensuring smooth operation, low noise and minimal vibration.
- Easy maintenance: The pump body is designed simply, facilitating disassembly and repair, and reducing maintenance costs.
- Multiple material options: Depending on the conveyed medium, the pump body, impeller and other components can be made of cast iron, stainless steel, etc., to adapt to various working conditions.
- Wide application range: It is suitable for clear water or liquids similar to clear water, with a temperature range generally from -20℃ to +120℃.
Scope of Application:
- Building water supply: Water supply systems for high-rise buildings, meeting the demands for domestic and fire-fighting water.
- HVAC: Circulating water transportation in HVAC systems.
- Industrial water supply: Providing a stable water source for industrial production.
- Municipal engineering: Applied in municipal water supply and drainage systems.
- Agricultural irrigation: Water transportation in agricultural irrigation systems.

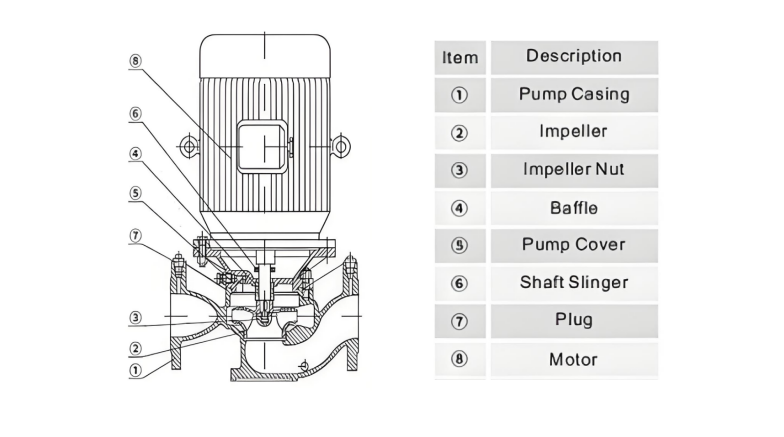

Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Motor Power | Efficiency | (NPSH)r | Inlet Diameter | Outlet Diameter | Weight | |
IHG | m3/h | L/s | m | rpm | kW | % | m | mm | mm | kg | |
1 | 20-160 | 1.8 2.5 3.3 | 0.5 0.69 0.91 | 33 32 30 | 2950 | 0.75 | 19
25
23 | 2.3 | 20 | 50 | 29 |
2 | 40-125 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 21 20 18 | 2950 | 1.1 | 41 46 43 | 2.3 | 40 | 40 | 32 |
3 | 50-200 | 8.8 12.5 16.3 | 2.44 3.47 5.43 | 52 50 48 | 2950 | 5.5 | 38 46 46 | 2.3 | 50 | 50 | 101 |
4 | 65-250 | 17.5 25 32.5 | 4.86 6.94 9.03 | 82 80 76.5 | 2950 | 15 | 39 50 52 | 2.5 | 65 | 65 | 180 |
5 | 80-250 | 35 50 65 | 9.72 13.9 18.1 | 83 80 72 | 2950 | 22 | 52 59 60 | 3.0 | 80 | 80 | 240 |
6 | 100-315A | 66.5 95 123 | 18.5 26.4 34.3 | 119 113 103 | 2950 | 55 | 65 66 67 | 4.0 | 100 | 100 | 549 |
7 | 125-250 | 96 160 192 | 26.7 44.4 53.3 | 87 80 73 | 2950 | 55 | 75 | 5.2 | 125 | 125 | 580 |
8 | 150-350 | 96
160
192 | 26.7
44.4
53.3 | 153.6 150 138 | 2950 | 110 | 80 | 5.5 | 150 | 150 | 970 |
9 | 200-400 | 140 200 260 | 38.9 55.6 72.2 | 53 50 44 | 1450 | 45 | 68 75 71 | 3.5 | 200 | 200 | 498 |
10 | 250-400 | 320 550 640 | 88.9 152.8 177.8 | 54.5 50 46 | 1450 | 110 | 72 | 4.5 | 250 | 250 | 1630 |
11 | 300-400 | 450 600 720 | 125 166 200 | 55 50 42.5 | 1450 | 132 | 78 | 5.0 | 300 | 300 | 1500 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
