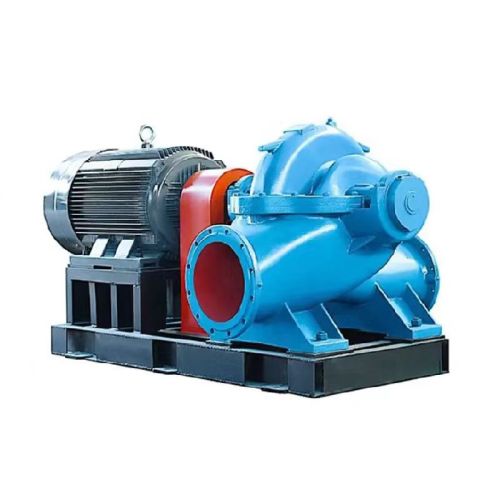

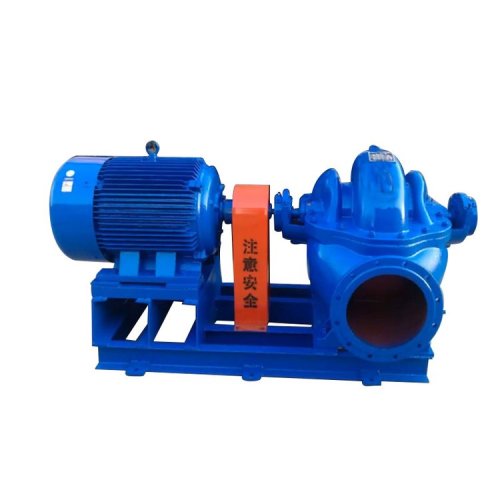

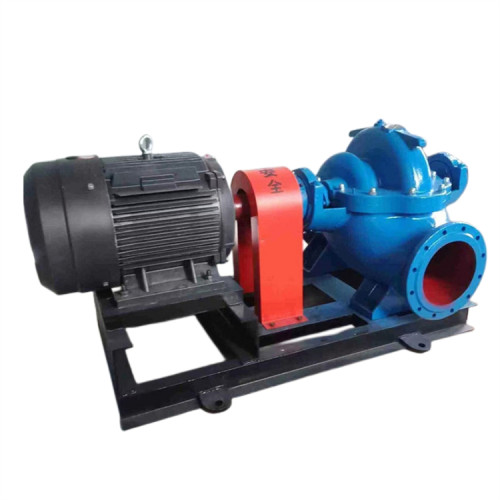

MS-Type Horizontal Split Case Centrifugal Pump | High Flow Flood Control And Water Logging Drainage | Cost Effective
- Price
- US $2000-1600
- Model
- MS
- MOQ
- 1 piece
Item specifics
- Material
- Cast iron, cast steel, stainless steel
- Capacity
- 50-18000m3/h
- Max Head
- 10-200m
- Colour
- customizable
Review
Description
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
MS type pump adopts national standard specification for design, its serialization,
standardization, high degree of generalization, superior performance, stable operation, safe
and reliable. New structures be used in the design, easy to maintain, repair and maintenance;
introducing new material may be applicable multiple media to delivery.
Model Description:
Description of Pump Type
For example：500MS35A-L-M（F、Y）-J
500 The diameter of the inlet （mm）
MS Single stage double suction, centrifugal split case pump
35 Head（m）
A-Changed outer diameter of impeller （the max diameter without mark）
L-Vertical type
M-Anti-frication
F-Anti-corrosion
Y-Anti-oil
J-Pump speed changed（Maintain the speed without mark）
Product Features:
- Double suction structure: The impeller adopts a double suction design, featuring large flow rate, balanced axial force, and more stable operation.
- Horizontal split design: The pump casing is split along the horizontal centerline, facilitating disassembly and maintenance without the need to remove the inlet and outlet pipes.
- High efficiency and energy saving: Advanced hydraulic model design ensures high efficiency, low energy consumption, and economical operation.
- Stable operation: The rotor components undergo precise dynamic balance correction, resulting in low vibration, low noise, and long service life.
- Superior materials: The flow-through parts are made of wear-resistant and corrosion-resistant materials, suitable for various media.
- Wide application range: It can transport clear water, seawater, and other liquids with physical and chemical properties similar to water.
Scope of Application:
Industry: For cooling, circulation, water supply and other systems.
Agriculture: For irrigation, drainage, etc.
Construction: For building water supply, fire protection systems, etc.
Municipal: For urban water supply, drainage, sewage treatment, etc.

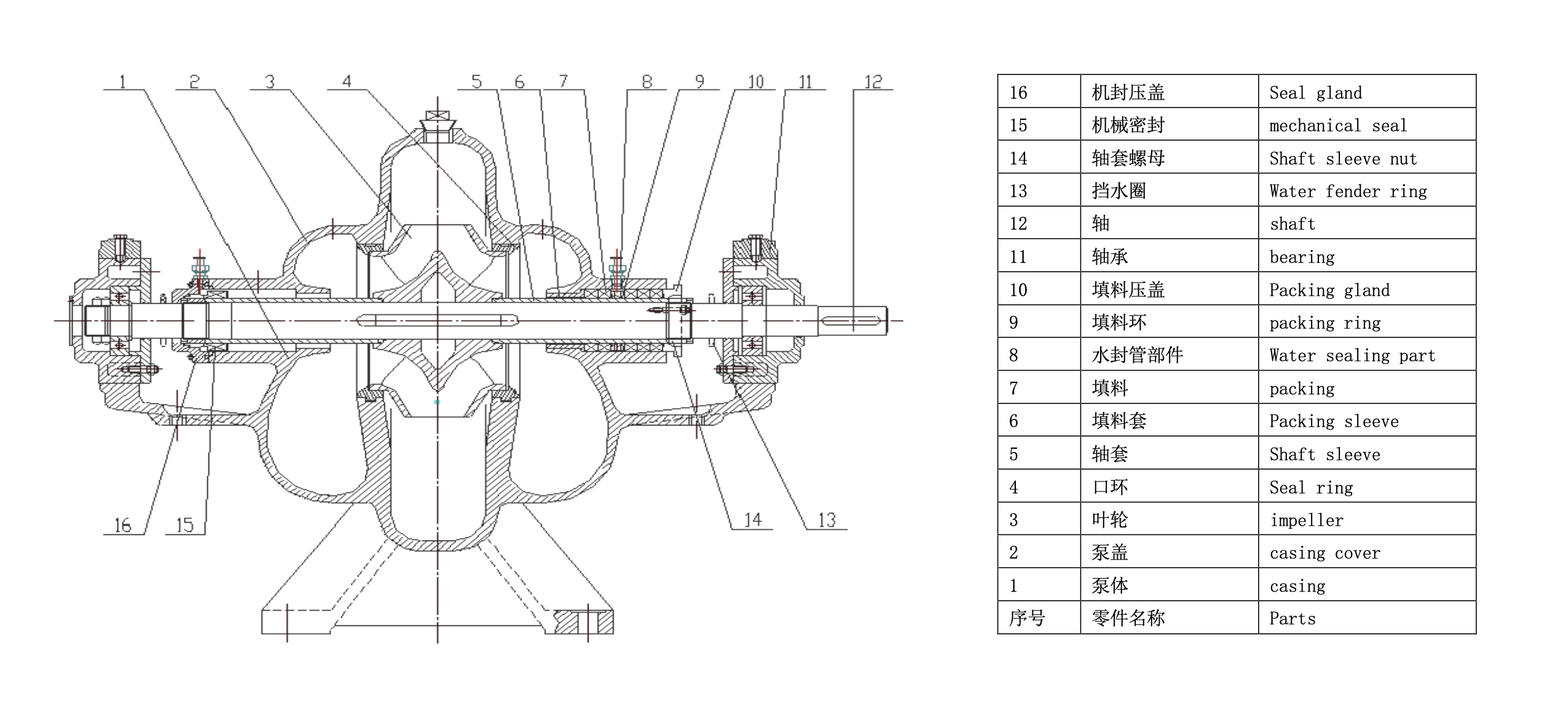

Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Shaft
power | Motor power | EFF | NPSH | |
MS | m3/h | L/s | m | rpm | (kw) | (kw) | (%) | (m) | |
1 | 150MS50 | 130
160
220 | 36.1
44.4
61.1 | 52
50
40 | 2980 | 25.3
27.3
31.1 | 37 | 72.9
80
77.2 | 3.9 |
2 | 150MS78A | 112
144
180 | 31.1
40
50 | 67
62
55 | 2980 | 30
33.8
33.5 | 45 | 68
72
70 | 5.9 |
3 | 200MS63 | 216
280
351 | 60
77.7
97.5 | 69
63
50 | 2980 | 54.8
58.3
66.4 | 75 | 74
82.7
72 | 5.4 |
4 | 250MS65 | 360 485 612 | 100 134.7 170 | 71 65 56 | 1480 | 92.8 109 129.6 | 132 | 75 79 72 | 6.7 |
5 | 300MS58 | 576 790 972 | 160 219.4 270 | 65 58 50 | 1480 | 136 148.5 165.5 | 185 | 75 84 80 | 5.8 |
6 | 350MS75 | 972 1260 1440 | 270 350 400 | 80 75 65 | 1480 | 271 304 349 | 355 | 78 85 80 | 5.3 |
7 | 500MS59 | 1620 2020 2340 | 450 561.1 650 | 68 59 47 | 980 | 379.7 391 374.4 | 450 | 79 83 80 | 4.5 |
8 | 600MS47 | 2160 3170 3600 | 600 880.5 1000 | 56.6 47 40.5 | 980 | 415.4 455.9 461.7 | 560 | 80 88 86 | 7.5 |
9 | 700MS35 | 3840 4800 5760 | 1066.6 1333.3 1600 | 42 36 28 | 980 | 522.9 580.5 630.2 | 630 | 86 90 81 | 8.6 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
Data Download:
MS-type SPlit-case double suction Pump
