S-type Split-Case Double Suction Pump | High Flow Flood Control and Water Logging Drainage Split Case Centrifugal Pump | Cost Effective
- Price
- US $2000-1600
- Model
- S
- MOQ
- 1 piece
Item specifics
- Material
- Cast iron, cast steel, stainless steel
- Capacity
- 50-18000m3/h
- Max Head
- 10-200m
- Colour
- customizable
Review
Description
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The S-type split-case pump is a single-stage, double-suction, horizontal split-case centrifugal pump, named for its casing being split along a horizontal center line. It features a large flow rate, moderate head, and stable operation, and is widely used in urban water supply, farmland irrigation, industrial circulating water systems, air conditioning systems, and large-scale water conservancy projects, among other fields.
Model Description:
Take 500S35A as an example:
- 500: The inlet diameter of the pump (mm)
- S: Split-case pump series
- 35: Design point head (m)
- A: The impeller has undergone the first cut
Product Features:
- Double suction structure: The impeller adopts a double suction design, featuring large flow rate, balanced axial force, and more stable operation.
- Horizontal split design: The pump casing is split along the horizontal centerline, facilitating disassembly and maintenance without the need to remove the inlet and outlet pipes.
- High efficiency and energy saving: Advanced hydraulic model design ensures high efficiency, low energy consumption, and economical operation.
- Stable operation: The rotor components undergo precise dynamic balance correction, resulting in low vibration, low noise, and long service life.
- Superior materials: The flow-through parts are made of wear-resistant and corrosion-resistant materials, suitable for various media.
- Wide application range: It can transport clear water, seawater, and other liquids with physical and chemical properties similar to water.
Scope of Application:
Industry: For cooling, circulation, water supply and other systems.
Agriculture: For irrigation, drainage, etc.
Construction: For building water supply, fire protection systems, etc.
Municipal: For urban water supply, drainage, sewage treatment, etc.

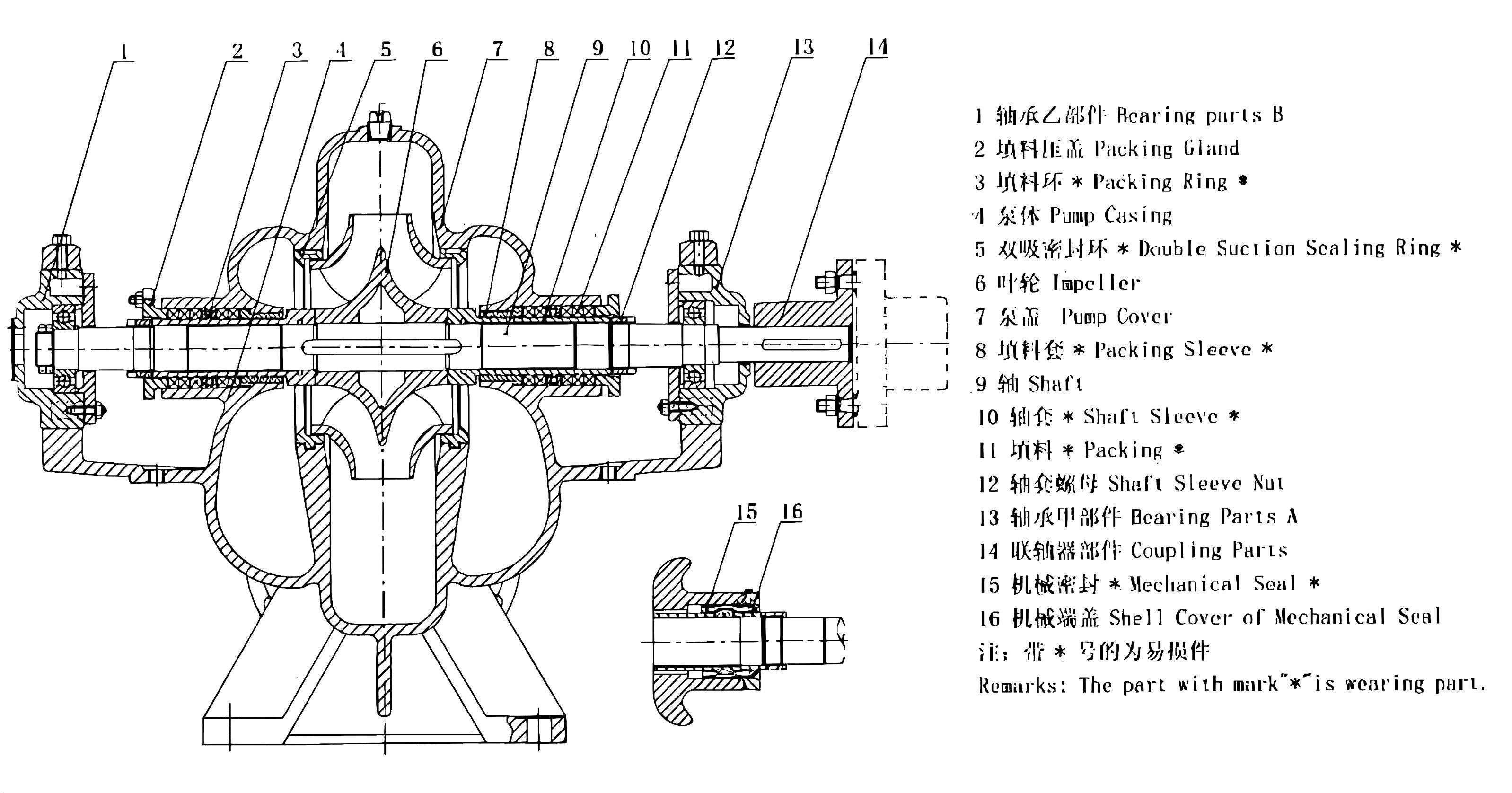

Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Shaft
power | Motor power | EFF | NPSH | |
S | m3/h | L/s | m | rpm | (kw) | (kw) | (%) | (m) | |
1 | 150S50 | 108 160
193 | 30 44.4 53.6 | 58 55 52 | 2980 | 24.6 30.1 33.3 | 37 | 69 81 82 | 2.9 3.8 4.4 |
2 | 150S78 | 126
160
198 | 35
44.4
55 | 84
78
70 | 2980 | 40
45.3 51 | 55 | 72
75
74 | 5.8 5.96.5 |
3 | 150S97 | 126
180
216 | 35
50
60 | 104
97
87 | 2980 | 49
59
64 | 75 | 73
80
79 | 3.0 3.85.3 |
4 | 200S42 | 216
280
342 | 60
77.7
95 | 48
42
35 | 2980 | 34.9 37.7 40.2 | 55 | 81
85
81 | 5.4 |
5 | 200S63 | 216
280
351 | 60
77.7
97.5 | 69
63
50 | 2980 | 54.8
58.3
66.4 | 75 | 73.7 81 70.5 | 5.4 |
6 | 200S95 | 216 280
336 | 60 77.7
93.3 | 99 95
87 | 2980 | 74 80 79 | 110 | 74 80 79 | 4.0 4.76.6 |
7 | 250S14 | 360
485
576 | 100
134.7
160 | 17.5
14
11 | 1480 | 19.7 22.6 23.3 | 30 | 72.5 85.6 82.7 | 2.0 3.4 4.2 |
8 | 250S24 | 360
485
576 | 100
134.7
160 | 27
24
19 | 1480 | 33.1
36.9
36.3 | 45 | 80
86
82 | 6.7 |
9 | 300S32 | 612 790 900 | 170 219.4 250 | 36 32 28 | 1480 | 77.9 82 85 | 110 | 77 84 81 | 5.0 5.8 5.9 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
