Clean Water Pump Single Stage Wear-resistant Clean Water Centrifugal Pump | High Efficiency
- Price
- US $600-400
- Model
- IH
- MOQ
- 1 piece
Item specifics
- Power
- 0.55-110KW
- Capacity
- 6.3-400m3/h
- Max Head
- 5-125m
- Colour
- customizable
Review
Description
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction

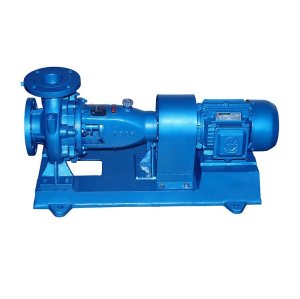

The IH type stainless steel chemical pump is a single-stage single-suction centrifugal pump, specially designed for transporting corrosive media. Made of stainless steel, it features excellent corrosion resistance and is widely used in industries such as chemical engineering, petroleum, pharmaceuticals, food, and metallurgy for transporting corrosive liquids like acids, alkalis, and salts. Its temperature range is from -20℃ to 120℃.
Model Description:
Take IH50-32-160 as an example:
- IH: Stainless steel chemical pump type
- 50: Pump inlet diameter (mm)
- 32: Pump outlet diameter (mm)
- 160: Impeller nominal diameter (mm)
Product Features:
- Strong corrosion resistance: Made of stainless steel, it is suitable for various corrosive media.
- Compact structure: With a reasonable design, it occupies a small area and is easy to install.
- High efficiency and energy saving: Adopting an advanced hydraulic model, it has high efficiency and low energy consumption.
- Smooth operation: The impeller has undergone precise balance correction, resulting in low vibration and low noise.
- Easy maintenance: The pump shaft and motor are on the same axis, making disassembly and assembly convenient and reducing maintenance costs.
- Reliable sealing: Equipped with mechanical seals or packing seals to ensure no leakage and reliable operation.
Scope of Application:
- Chemical industry: used for transporting corrosive liquids such as acids, alkalis and salts.
- Petroleum industry: used for transporting crude oil, refined oil and chemical raw materials.
- Pharmaceutical industry: used for transporting medicinal liquids, solvents, etc.
- Food industry: used for transporting beverages, dairy products, etc.
- Metallurgical industry: used for transporting pickling solutions, electrolytes, etc.
Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Efficiency | (NPSH)r | Motor Power | Inlet Diameter | Outlet Diameter | Weight |
IH | m3/h | m | rpm | % | m | kW | mm | mm | kg | |
1 | 80-50J-250A | 23.4 | 17.5 | 1450 | 59
59
51
51
59 | 2.0 | 3 | 80 | 50 | 98 |
2 | 80-50J-250B | 22 | 15.5 | 1450 | 58
58
50
50
58 | 2.0 | 2.2 | 80 | 50 | 98 |
3 | 80-50-315 | 50 | 125 | 2900 | 54
54
52
52
54 | 2.0 | 37 | 80 | 50 | 115 |
4 | 80-50-315A | 44 | 114 | 2900 | 53
53
51
51
53 | 2.0 | 37 | 80 | 50 | 115 |
5 | 80-50J-315 | 25 | 32 | 1450 | 52
52
46
46
52 | 2.0 | 5.5 | 80 | 50 | 115 |
6 | 80-50J-315A | 22 | 28 | 1450 | 51
51
45
45
51 | 2.0 | 5.5 | 80 | 50 | 115 |
7 | 100-80-125 | 100 | 20 | 2900 | 78
73
73
73
78 | 4.3 | 11 | 100 | 80 | 63 |
8 | 100-80-250A | 91.2 | 16.6 | 2950 | 77
77
72
72
77 | 4.3 | 7.5 | 100 | 80 | 63 |
9 | 100-80J-250
| 50 | 5 | 1450 | 75
75
69
69
75 | 4.3 | 1.5 | 100 | 80 | 63 |
10 | 100-80-125A | 45.6 | 4.2 | 1450 | 74
74
68
68
74 | 4.3 | 1.1 | 100 | 80 | 63 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
