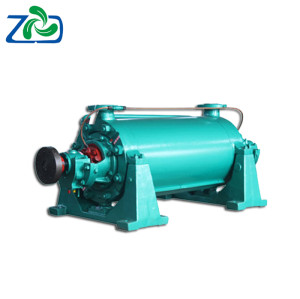

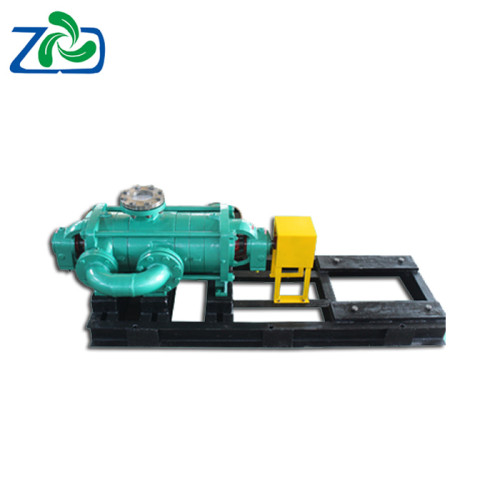

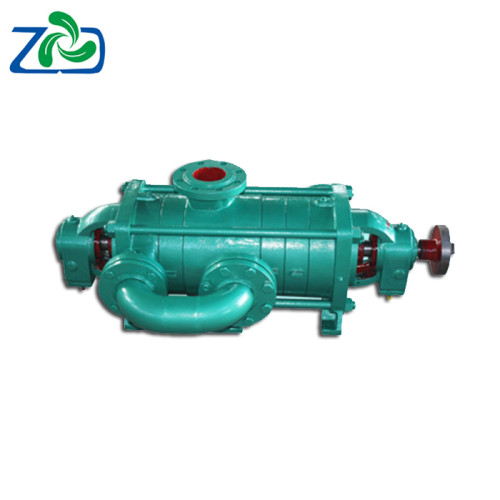

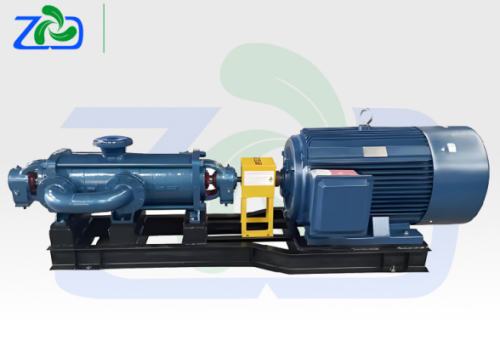

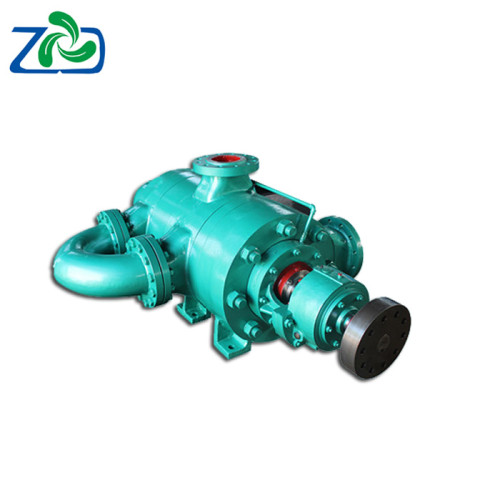

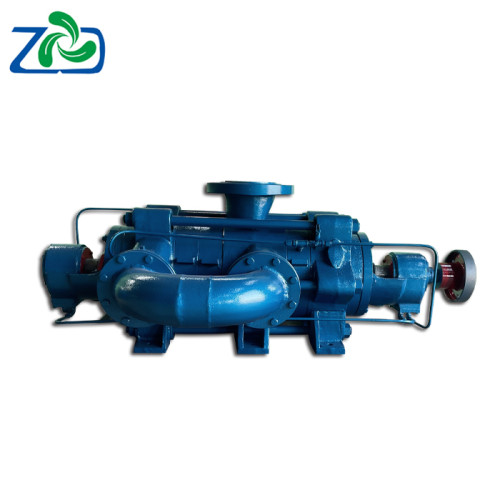

ZDP Horizontal Multistage Self Balancing Centrifugal Water Pump | High-efficiency | Energy-saving
- Price
- US $3500-2800
- Model
- ZD（P）
- MOQ
- 1 piece
Item specifics
- Material
- Cast iron, cast steel, stainless steel
- Capacity
- 3.75-840m3/h
- Max Head
- 19-680m
- Colour
- customizable
Review
Description
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The ZPD self-balancing mining pump is mainly made of ductile
iron and other wear-resistant materials, used for conveying neutral
mine water and similar media with solid particles <0.5mm,content
≤15%, temperature ≤80°C.
The ZPD self-balancing mining pump incorporates the design
principle of axial force offset between positive and negative
impellers,effectively addressing issues related to balance system
vulnerability and maintenance complexity, thereby significantly
enhancing the pump's operational lifespan. Currently, the company
produces the series of pumps with a flow rate≤ 1200m3/h and head
≤1500m.
Model Description:
For example: ZDP 100-80×6
✔ ZDP: Self balancing multi-stage centrifugal pump
✔ 100: The rated flow rate of the water pump is 100 m³/h
✔ 80: Design point single-stage head is 80 m
✔ 6 : Number of stages is 6 stages
Product Features:
- Self-balancing design: The traditional balance disc device is eliminated, ensuring more stable operation and a lower failure rate.
- High efficiency and energy saving: Advanced hydraulic models are adopted, achieving high efficiency and low energy consumption, meeting the requirements of energy conservation and environmental protection.
- Compact structure: Small in size and light in weight, it is convenient for installation and maintenance.
- Smooth operation: Low vibration and noise, with a long service life.
- Strong corrosion resistance: Flowing parts are made of corrosion-resistant materials, suitable for various water qualities.
- Low maintenance cost: No wear of the balance disc reduces maintenance frequency and cost.
Scope of Application:
- Mine drainage
- Boiler feed water in power plants
- Urban water supply system
- Irrigation of farmland
- High-pressure water supply in industrial production

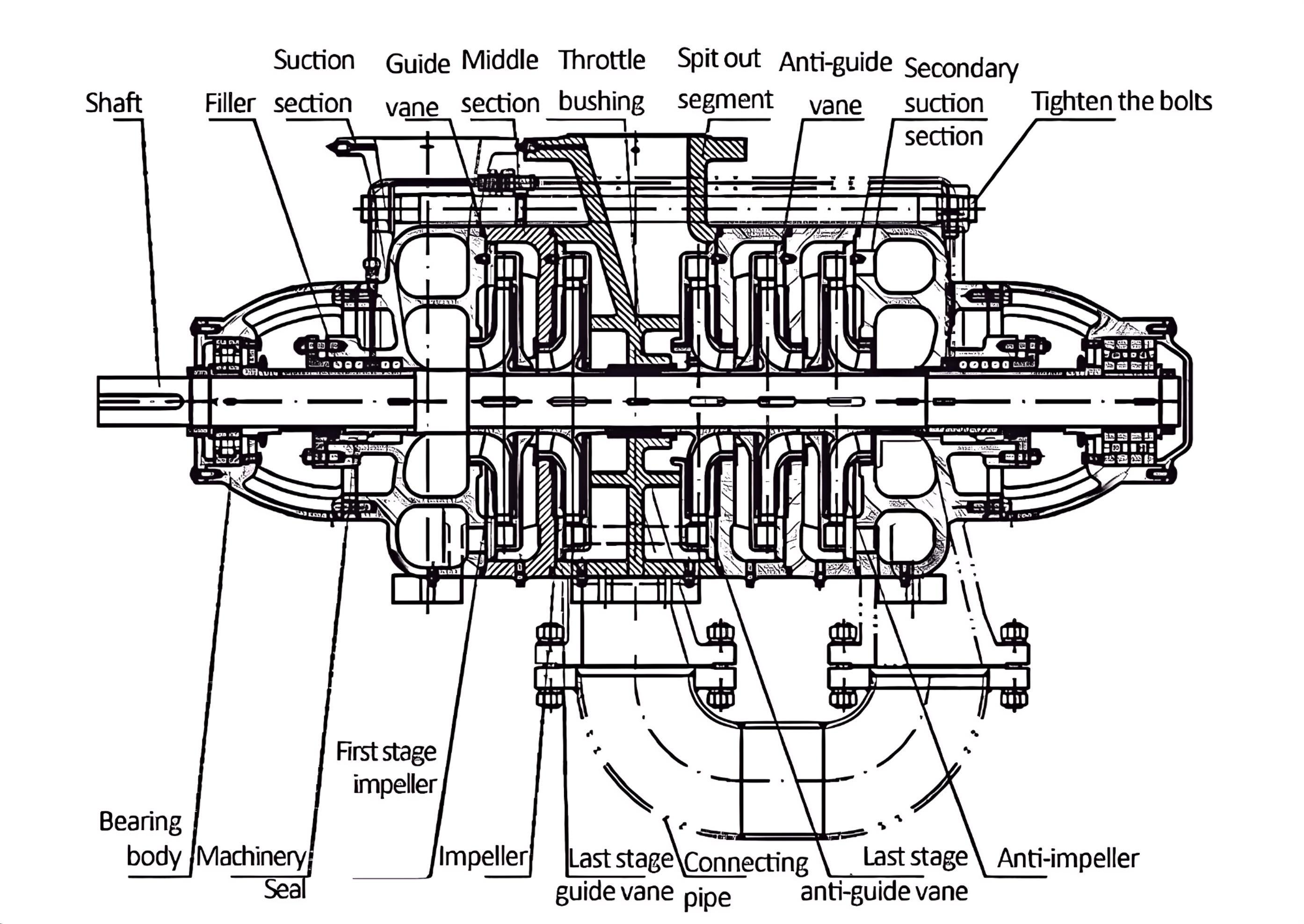

Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Efficiency | (NPSH)r | Motor Power | Inlet Diameter | Outlet Diameter | Weight | |
ZDP | m3/h | L/s | m | rpm | % | m | kW | mm | mm | kg | |
1 | 6-50×2 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 104 100 96 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 11 | 50 | 50 | 142 |
2 | 6-50×3 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 156 150 144 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 15 | 50 | 50 | 156 |
3 | 6-50×4 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 208 200 192 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 18.5 | 50 | 50 | 170 |
4 | 6-50×5 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 260 250 240 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 22 | 50 | 50 | 184 |
5 | 6-50×6 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 312 300 288 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 30 | 50 | 50 | 197 |
6 | 6-50×7 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 364 350 336 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 30 | 50 | 50 | 211 |
7 | 6-50×8 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 416 400 384 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 37 | 50 | 50 | 225 |
8 | 6-50×9 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 468 450 432 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 37 | 50 | 50 | 238 |
9 | 6-50×10 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 520 500 480 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 45 | 50 | 50 | 252 |
10 | 6-50×11 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 572 550 528 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 45 | 50 | 50 | 265 |
11 | 6-50×12 | 3.75 6.3 7.5 | 1.04 1.75 2.08 | 624 600 576 | 2950 | 28 30 29 | 3.0 3.0 3.5 | 55 | 50 | 50 | 279 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
Data Download:
ZDP Self balancing multi-stage
centrifugal pump
