Price
US $880-845
Model
QH Stainless Stell Deep-well Pump
MOQ
1 piece

Item specifics

Material
Cast iron, cast steel, stainless steel
Capacity
As Customer Requirements
Max Head
As Customer Requirements
Colour
customizable

Review

Description

  • Product Introduction
  • Product Features
  • Scope of Application
  • Structural Drawings
  • Performance Parameters
  • Data Download

Product Introduction

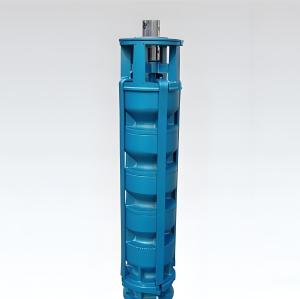

QH stainless steel deep well pump is a high-performance water pump specially designed for deep well water extraction, widely used in agricultural irrigation, industrial water supply, domestic water use and other fields. Its core feature is that it is made of stainless steel, which has excellent corrosion resistance and durability, making it particularly suitable for extracting groundwater containing corrosive substances or for occasions with high water quality requirements.

Model Description:


     For example, QH100-50-15, where:
✔  QH: indicates the type of stainless steel deep well pump.
✔  100: represents the pump's flow rate (cubic meters per hour).
✔  50: represents the pump's head (meters).
✔  30: Design point single-stage head is 30 m
✔  15: represents the pump's motor power (kilowatts).
icon

Product Features:

  • - Excellent material: The main components such as the pump body and impeller are made of stainless steel (such as 304 or 316 stainless steel), which has strong corrosion resistance and is suitable for various water quality environments.
  • - High efficiency and energy saving: Advanced hydraulic model design ensures high operating efficiency, low energy consumption, and economic practicality.
  • - Compact structure: The pump body is designed compactly, easy to install, and suitable for deep wells with smaller diameters.
  • - Stable operation: The motor is directly connected to the pump body, ensuring smooth operation, low noise, and minimal vibration.
  • - Long service life: The stainless steel material and precise manufacturing process guarantee the durability of the pump and extend its service life.
  • - Easy maintenance: The modular design makes disassembly and repair convenient, reducing maintenance costs.
icon

Scope of Application:

- Agricultural irrigation: Extracting groundwater from deep wells to meet the irrigation needs of farmland.
- Industrial water supply: Providing a stable water source for industrial production, especially suitable for industries with high water quality requirements such as chemical engineering and pharmaceuticals.
- Domestic water supply: Used for the supply of domestic water in rural and urban areas, ensuring the safety of drinking water.
- Mine drainage: Applicable for mine drainage and groundwater extraction.
- Seawater desalination: Some models can be used for water lifting operations in seawater desalination systems.

iconStructural Drawings:

Multi-stage pump structure diagram

iconPerformance Parameters:

NO.
Model
Flow
Head
Speed
Efficiency
(NPSH)r
Motor Power
Inlet
Diameter
Outlet
Diameter
Weight
D/MD/DY/DF
m3/h
L/s
m
rpm
%
m
kW
mm
mm
kg
1
6-50×2
3.75
6.3
7.5
1.04
1.75
2.08
104
100
96
2950
28
30
29
3.0
3.0
3.5
11
50
50
142
2
6-50×3
3.75
6.3
7.5
1.04
1.75
2.08
156
150
144
2950
28
30
29
3.0
3.0
3.5
15
50
50
156
3
6-50×4
3.75
6.3
7.5
1.04
1.75
2.08
208
200
192
2950
28
30
29
3.0
3.0
3.5
18.5
50
50
170
4
6-50×5
3.75
6.3
7.5
1.04
1.75
2.08
260
250
240
2950
28
30
29
3.0
3.0
3.5
22
50
50
184
5
6-50×6
3.75
6.3
7.5
1.04
1.75
2.08
312
300
288
2950
28
30
29
3.0
3.0
3.5
30
50
50
197
6
6-50×7
3.75
6.3
7.5
1.04
1.75
2.08
364
350
336
2950
28
30
29
3.0
3.0
3.5
30
50
50
211
7
6-50×8
3.75
6.3
7.5
1.04
1.75
2.08
416
400
384
2950
28
30
29
3.0
3.0
3.5
37
50
50
225
8
6-50×9
3.75
6.3
7.5
1.04
1.75
2.08
468
450
432
2950
28
30
29
3.0
3.0
3.5
37
50
50
238
9
6-50×10
3.75
6.3
7.5
1.04
1.75
2.08
520
500
480
2950
28
30
29
3.0
3.0
3.5
45
50
50
252
10
6-50×11
3.75
6.3
7.5
1.04
1.75
2.08
572
550
528
2950
28
30
29
3.0
3.0
3.5
45
50
50
265
11
6-50×12
3.75
6.3
7.5
1.04
1.75
2.08
624
600
576
2950
28
30
29
3.0
3.0
3.5
55
50
50
279
...
...
...
...
...
...
...
...
...
...
...
...

*For more models, please download our catalogue or contact us.

iconData Download:

Download Multistage Pumps PDF Brochure

D-type Multistage Pump

Download Product PDF Brochure

PDF Download
