ZX Horizontal Self-priming clogging sewage pump | High Efficiency | Stable performance
- Model
- ZX Self-priming Pump
Item specifics
- Material
- Cast iron, cast steel, stainless steel
- Capacity
- 5-800m3/h
- Max Head
- 12-60m
- Colour
- customizable
Review
Description
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The ZW type self-priming pump is a centrifugal pump with self-priming function, suitable for conveying clear water, sewage, oil and liquids containing solid particles. This pump features strong self-priming capacity, compact structure and stable operation. It is widely used in municipal engineering, sewage treatment, agricultural irrigation, industrial circulating water and other fields. Its temperature range is from -20℃ to 80℃.
Model Description:
Take ZX65-30-15 as an example:
- ZX: ZX-type self-priming pump type
- 65: Pump inlet diameter (mm)
- 30: Pump rated flow (m3/h)
- 15: Pump rated head (m)
Product Features:
- Strong self-priming ability: The unique impeller design enables a self-priming height of up to 5 meters and a short self-priming time.
- Compact structure: With a reasonable design, it occupies a small area and is easy to install.
- High efficiency and energy saving: Advanced hydraulic models are adopted, ensuring high efficiency and low energy consumption.
- Smooth operation: The impeller undergoes precise balance correction, resulting in low vibration and low noise.
- Easy maintenance: The pump shaft and motor are on the same axis, making disassembly and assembly convenient and reducing maintenance costs.
- Reliable sealing: Mechanical seals or packing seals are used to ensure no leakage and reliable operation.
Scope of Application:
- Municipal engineering: for urban water supply, drainage and sewage treatment.
- Agricultural irrigation: for farmland irrigation and sprinkler systems.
- Industrial circulating water: for cooling systems, boiler feed water, condensate water transportation, etc.
- Sewage treatment: for transporting sewage containing solid particles, sludge, etc.
- Oil transportation: for transporting oil and oily liquids.

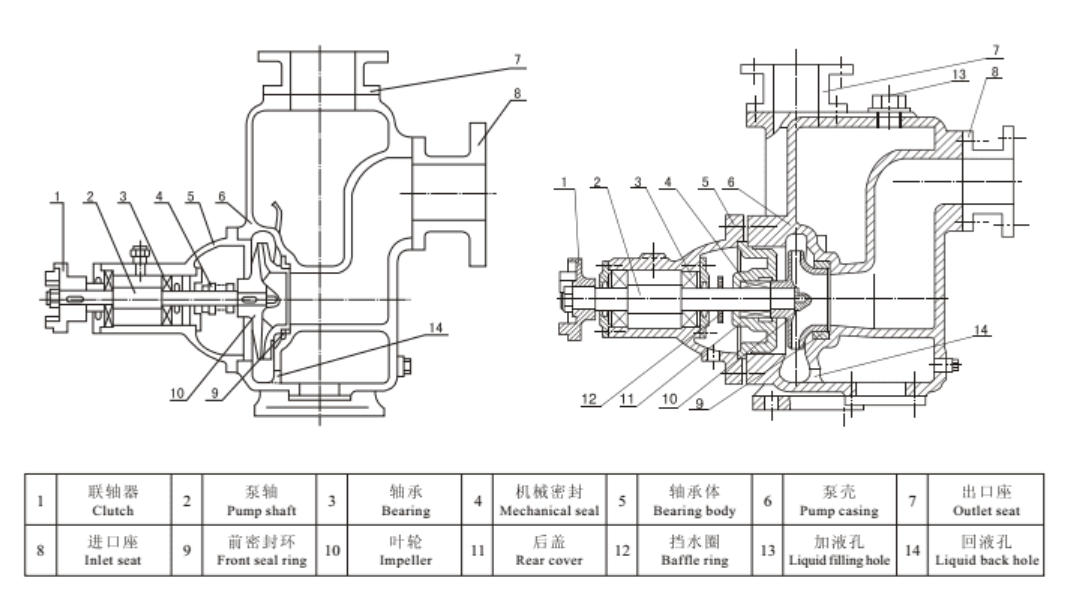

Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Motor Power | Speed | Efficiency | (NPSH)r | Suction Head | Suction Time | Inlet Diameter |
ZX | m3/h | m | kW | rpm | % | m | m | min/5m | mm | |
1 | 32-3.2-20 | 3.2 | 20 | 1.1 | 2950 | 45 | 2.5 | 5.5 | 3 | 32 |
2 | 40-6.3-20 | 6.3 | 20 | 1.5 | 2950 | 45 | 2.5 | 5.5 | 3 | 40 |
3 | 50-18-20 | 18 | 20 | 2.2 | 2950 | 45 | 2.5 | 5.5 | 3 | 50 |
4 | 50-12.5-32 | 12.5 | 32 | 3 | 2950 | 48 | 2.5 | 5.5 | 3 | 50 |
5 | 65-30-15 | 30 | 15 | 3 | 2950 | 45 | 2.5 | 5.5 | 3 | 65 |
6 | 65-25-50 | 25 | 50 | 7.5 | 2950 | 52 | 3.0 | 5.5 | 3 | 65 |
7 | 80-50-25 | 50 | 25 | 7.5 | 2950 | 53 | 3.0 | 5.5 | 2 | 80 |
8 | 100-80-20 | 80 | 20 | 11 | 2950 | 51 | 4.0 | 5.5 | 3 | 100 |
9 | 100-100-32 | 100 | 32 | 15 | 2950 | 55 | 4.0 | 5.5 | 2 | 100 |
10 | 150-180-28 | 180 | 28 | 30 | 2950 | 60 | 5.0 | 5.0 | 3 | 150 |
11 | 150-160-80 | 160 | 80 | 55 | 2950 | 65 | 5.0 | 5.0 | 3 | 150 |
12 | 200-400-32 | 400 | 32 | 55 | 1450 | 55 | 5.0 | 5.0 | 3 | 200 |
13 | 250-550-32 | 550 | 32 | 75 | 1450 | 60 | 6.0 | 4.5 | 3.5 | 250 |
14 | 250-450-55 | 450 | 55 | 110 | 1450 | 61 | 6.0 | 4.5 | 2.5 | 250 |
15 | 300-500-50 | 500 | 50 | 110 | 1450 | 63 | 6.0 | 4.5 | 2.5 | 300 |
16 | 300-550-55 | 550 | 55 | 132 | 1450 | 62 | 6.0 | 4.5 | 2.5 | 300 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
Data Download:
ZX-type self-priming centrifugal Pump
